Depwire MCP Server

Depwire

Your AI doesn't know your architecture. Depwire does.

What makes Depwire different

Depwire builds a DETERMINISTIC, NOT PROBABILISTIC dependency graph of your codebase. This is not RAG. There are no embeddings, no similarity scores, no vector databases, no guesses. Depwire uses tree-sitter — the same parser powering GitHub's code intelligence — to extract exact symbol-level facts from every file: every function, every class, every interface, every import and export relationship, across 16 programming languages. When you ask "what breaks if I delete encodeToken in auth/token.ts?", Depwire does not search for similar-looking code and estimate an answer. It traverses the exact dependency graph and returns the precise list of 14 files that import that symbol, which import chains break, and what your health score drops by. This is compiler-level precision applied to AI-assisted development — not a language model's best guess about your code.

Not a build graph either. Tools like Nx, Turborepo, and Grapher track package-level dependencies for build caching. Depwire tracks symbol-level dependencies — every function, class, and import relationship — which is what makes What If simulation, graph-aware security scanning, and exact blast radius analysis possible.

Contents

• What makes Depwire different
• Start here
• The infrastructure layer
• What If simulation
• Security scanner
• Pre-action verification
• Structural diff between commits
• MCP server — AI integration
• Cross-language edge detection
• Architecture health score
• Language support
• SDK
• Cloud dashboard
• GitHub Action — PR Impact Analysis
• Depwire Action Token (DAT)
• Roadmap

---

Depwire is the infrastructure layer between your AI coding assistant and your codebase. Before your AI touches a single file, Depwire has already mapped every connection, scored every risk, and simulated every change.

⭐ If Depwire saves you from a broken build, star the repo — it helps this project grow.

---

The problem

AI coding tools are getting smarter. But they still have a fundamental blind spot: they don't know your architecture before they touch it.

You ask Claude to delete a utility file. It deletes it cleanly. Confident. No warnings.

Then you run the build. 30 files broken.

Claude had no idea. It saw one file. It didn't see the 30 downstream consumers.

This isn't a model problem. It's a context problem. The AI is flying blind.

---

The infrastructure layer

Depwire is the context and safety layer for AI-generated code.

Depwire sits between your AI and your codebase. It builds a complete dependency graph using tree-sitter — deterministic, not probabilistic — and serves it to your AI through 23 MCP tools.

Four guarantees:

• Local — everything runs on your machine. No cloud parsing. No data sent anywhere.
• Secure — your code never leaves your machine. The security scanner requires no API key.
• Token-efficient — Depwire serves pre-computed graph data. Your AI gets surgical answers, not file dumps. 40% fewer tool calls. 56% fewer file reads.
• Deterministic — tree-sitter parses your code the same way every time. 100% accurate. Not a guess.

---

Start here

npm install -g depwire-cli

Three commands to understand any codebase:

depwire whatif     # know what breaks before you change anything
depwire security   # catch vulnerabilities before AI ships them
depwire viz        # see your entire architecture instantly

---

Tested on real-world projects

Numbers from real depwire parse runs on public repositories. Last validated: v1.7.1 (June 2026).

---

What If simulation

Know the blast radius before you touch anything.

depwire whatif . --simulate delete --target src/utils/encode.ts

Real output on honojs/hono — 352 files, 6,245 symbols:

Health Score:    41 → 41  (+0 → unchanged)
Affected Nodes:  29
Broken Imports:  30
• src/utils/jwt/jwt.ts imports decodeBase64Url
• src/adapter/aws-lambda/handler.ts imports encodeBase64
• src/utils/basic-auth.ts imports decodeBase64
[27 more...]
Removed Edges:   32

Before touching a single file. Zero file I/O. Pure in-memory simulation.

Five operations:

depwire whatif . --simulate delete --target src/utils/encode.ts
depwire whatif . --simulate move --target src/utils/encode.ts --destination src/core/encode.ts
depwire whatif . --simulate rename --target src/utils/encode.ts --destination src/utils/encoder.ts
depwire whatif . --simulate split --target src/services/auth.ts --symbols "validateToken,refreshToken"
depwire whatif . --simulate merge --target src/utils/helpers.ts --merge-target src/utils/formatters.ts

Run without --simulate to open the browser UI — side-by-side arc diagrams showing current vs simulated state.

---

Cross-module dependency intelligence

For multi-module Maven and Gradle projects, Depwire resolves imports across module boundaries — not just within a single module.

Example: simulating deletion of Injector.java in google/guice (a 13-module Java DI framework):

$ depwire whatif . --simulate delete --target core/src/com/google/inject/Injector.java

Action:          DELETE core/src/com/google/inject/Injector.java
Affected Nodes:  128
Broken Imports:  124  (cross-module: 106 across 10 extension modules)

Without this, your AI agent has no visibility into cross-module blast radius. With it, dangerous changes are caught before they happen.

Supported build systems:

• Maven (pom.xml with <modules> declarations, recursive nested modules)
• Gradle (settings.gradle / settings.gradle.kts with include() declarations)

Both standard (src/main/java) and non-standard (src/) source layouts are supported.

---

Security scanner

AI will confidently ship vulnerable code. Depwire stops it before production.

depwire security .                        # full repo scan
depwire security . --target src/auth.ts   # single file
depwire security . --format sarif         # GitHub Security tab integration
depwire security . --fail-on high         # CI gate — exit 1 if HIGH or above
depwire security . --class secrets         # specific check only

Real output on honojs/hono:

6 Critical  19 High  14 Medium  1 Low

10 check categories — dependency CVEs, process safety, credential management, path safety, authentication safety, input validation, information disclosure, cryptography weaknesses, output encoding safety, and architecture-level risks.

Graph-aware severity: a medium-severity finding reachable from an MCP tool or HTTP route is automatically elevated to critical. This is what no generic SAST tool can replicate — Depwire knows your architecture, so it knows what's actually reachable.

Available as MCP tool security_scan and via depwire-cli/sdk.

---

Pre-action verification

Verify a proposed change is safe before applying it. Checks broken imports, new circular dependencies, health score regression, and security findings in one pass.

depwire verify-change --file src/auth.ts --content-from new-auth.ts
depwire verify-change --diff changes.patch
depwire verify-change --file src/auth.ts --content-from new-auth.ts --json
cat new-auth.ts | depwire verify-change --file src/auth.ts

Example output:

Verify Change Report
──────────────────────────────────────────────────
✗ UNSAFE — risk: high
──────────────────────────────────────────────────
Health Score:  62 → 59  (-3)
Broken Imports: 2
  • src/index.ts — missing trackCommand
  • src/server.ts — missing handleAuth
New Circular Deps: 0
Security Findings: 1
  • [HIGH] Hardcoded secret detected (src/auth.ts:14)
Blast Radius:    8 files affected
──────────────────────────────────────────────────

CI integration:

depwire verify-change --diff pr.patch --fail-on-warnings --quiet
# exits 1 for medium risk, 2 for high risk

Available as MCP tool verify_change and CLI command depwire verify-change.

---

Structural diff between commits

Compare the dependency graph between any two git refs — branches, tags, commit hashes, HEAD~N.

depwire diff main feature/auth-refactor
depwire diff HEAD~5 HEAD --verbose
depwire diff v1.5.0 v1.6.0 --json | jq

Example output:

Depwire diff: v1.5.0..v1.6.0
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
Symbols
  + 114 added      VerifyChangeOptions, verifyChangeCommand, input ...
  - 66 removed    VerifyChangeInput, BrokenImportEntry, CircularDepEntry ...
  ~ 47 modified   __filename, __dirname, packageJsonPath ...
Edges
  + 31 added
  - 9 removed
Files
  152 → 154  (+2 / -0)
Blast radius:    4 files affected
Health score:    67 → 67  (+0)  [D → D]
Security:        1 new / 1 fixed
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

Deterministic. No LLM. Safe — uncommitted changes are stashed and restored even if the command errors.

Options: --json (machine-readable), --verbose (every symbol/edge by name), --no-security / --no-health (faster runs).

---

Visualization

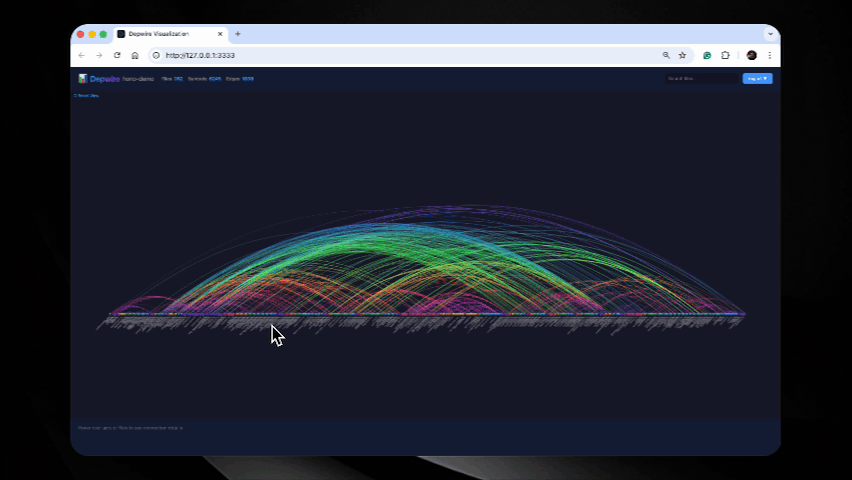

depwire viz

Interactive arc diagram of your entire codebase. Every file, every connection, every dependency visible at once. Hover to inspect. Click to filter. Export as PNG or SVG.

---

Temporal graph

depwire temporal

Watch your architecture evolve over git history. Timeline slider scrubs through commits — the arc diagram morphs as your codebase grew, coupled, and refactored. Nobody else does this.

---

All commands

All commands auto-detect your project root. No path configuration needed.

---

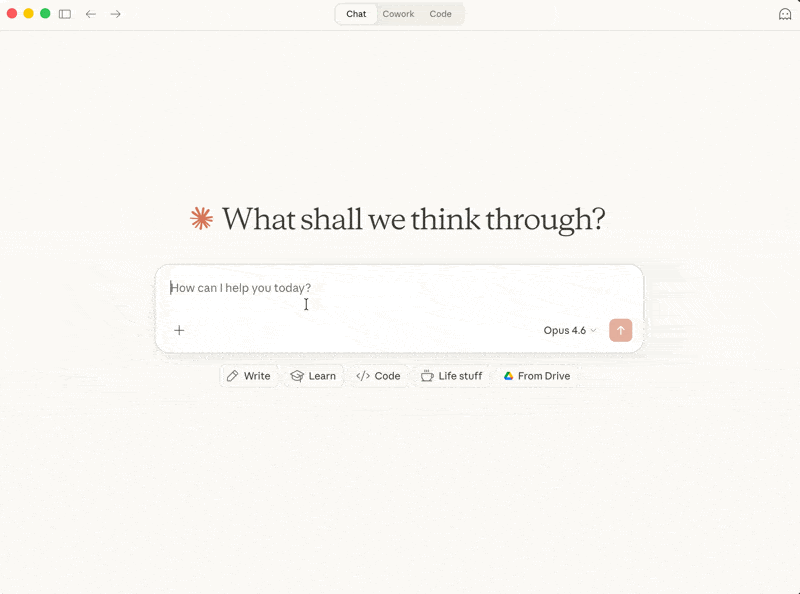

MCP server — AI integration

Connect Depwire to any MCP-compatible AI tool. Your AI gets 23 tools it can call autonomously.

Claude Desktop — add to ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "depwire": {
      "command": "npx",
      "args": ["-y", "depwire-cli", "mcp"]
    }
  }
}

Cursor — Settings → Features → Experimental → Enable MCP → Add Server:

• Command: npx
• Args: -y depwire-cli mcp

23 MCP tools

.depwire/ runtime state

The coordination tools (claim_files, release_files, get_active_claims, record_decision, get_decisions) write runtime state to .depwire/claims.jsonl and .depwire/decisions.jsonl. Add these to your project's .gitignore:

.depwire/claims.jsonl
.depwire/decisions.jsonl

---

Cross-language edge detection

Depwire detects connections between files written in different languages.

A TypeScript fetch('/api/users') call matched to a Python @app.get('/api/users') route definition — that's a cross-language edge. Delete the Python route and Depwire shows the TypeScript callers as broken.

Supported patterns:

• REST API edges — fetch/axios calls matched to Express, FastAPI, Flask, Gin route definitions
• Subprocess edges — execSync/subprocess.run calls matched to target files in the graph

These edges flow through every existing feature: What If simulation, impact analysis, security scanner, and arc diagram visualization.

---

Architecture health score

depwire health .

Overall: 68/100 (Grade: D)
Coupling              70   C
Cohesion              80   B
Circular Dependencies 100  A
God Files             40   F
Orphans & Dead Code   20   F
Dependency Depth      60   D

6 dimensions. Letter grades. Actionable recommendations. Trend tracking across runs.

Note on v1.6.1 scoring change: The dead code scoring methodology was corrected in v1.6.1 to only count exported symbols with zero dependents as candidates for dead code. Previously, local variables and class internals were incorrectly included, inflating dead code ratios for codebases with internally-complex modules. Health scores from v1.6.1+ are not directly comparable to scores from earlier versions.

---

SDK

Depwire exposes a stable public API for programmatic use and CI pipelines:

npm install depwire-cli

import {
  parseProject,
  buildGraph,
  calculateHealthScore,
  analyzeDeadCode,
  generateDocs,
  scanSecurity,
  SimulationEngine,
  detectCrossLanguageEdges,
  searchSymbols,
  getImpact,
  getArchitectureSummary,
  DepwireSDKVersion
} from 'depwire-cli/sdk';

The SDK is the stable public API surface. All integrations should import from depwire-cli/sdk — never from internal paths.

---

Why Depwire

---

Language support

TypeScript, JavaScript, Python, Go, Rust, C, C#, Java, C++, Kotlin, PHP, Swift, Mojo, Ruby, Dart, R — with cross-language edge detection between all supported languages.

Java / JVM — classes, interfaces, enums, records, annotations, inner classes, anonymous classes, lambda expressions, Maven pom.xml and Gradle build file dependency edges, Spring Boot cross-language edges (@GetMapping, @PostMapping, @RequestMapping), JAX-RS / Jakarta EE route detection, Spring WebFlux RouterFunction support.

C# / .NET — classes, interfaces, records, structs, enums, delegates, file-scoped namespaces, primary constructors, global usings, .csproj ProjectReference and PackageReference edges, ASP.NET Core cross-language edges (attribute routing + Minimal API).

C++ / Systems — classes, structs, unions, enums, namespaces, concepts, coroutines, C++20 modules, template support with parameter stripping. CMakeLists.txt, Conan, and vcpkg dependency edge parsing. Crow, Drogon, Pistache, and cpp-httplib cross-language route detection. Dead code detection with vtable and template exclusions. Health score checks: circular includes, missing header guards, god classes, raw pointer fields, missing virtual destructors. Security scanner: memory safety patterns, format string issues, memory management patterns, process execution safety patterns.

Kotlin / JVM — classes, data classes, sealed classes, objects, companion objects, value classes, type aliases, extension functions, enum classes, annotation classes. Coroutine awareness: suspend functions, GlobalScope detection, structured concurrency checks. build.gradle.kts, build.gradle, and settings.gradle.kts dependency parsing. Spring Boot, Ktor, Http4k, and Ktor Resources cross-language route detection. Android Retrofit outgoing edge detection. Dead code detection with Android lifecycle and Spring annotation exclusions. Security scanner: query safety patterns, credential management patterns, random number generation safety, not-null assertion abuse, Ktor missing auth blocks.

PHP / Web — functions, classes, methods, interfaces, traits, enums, namespaces, use statements, require/include dependency edges. Both procedural and OOP styles. Laravel (Route::get/post/put/delete/patch, middleware), Symfony (#[Route(...)]), Slim Framework, and WordPress REST API (register_rest_route) cross-language route detection. Guzzle and file_get_contents HTTP client edge detection. Dead code detection with WordPress hooks, Laravel service providers, Symfony controllers, and magic method exclusions (__construct, __get, __set, __call). Security scanner: query safety patterns, runtime evaluation safety patterns, process execution safety patterns, regex modifier vulnerabilities, serialization safety patterns, variable handling safety patterns, password hashing safety patterns, deprecated crypto libraries, weak PRNG in security contexts, credential management patterns.

Swift / Apple — functions, methods, initializers (init), deinitializers (deinit), classes, structs, enums, protocols, extensions, actors (Swift concurrency), properties (var, let), computed properties, type aliases, associated types. Package.swift (SPM) dependency parsing. Vapor, Hummingbird, and Perfect cross-language route detection. URLSession and Alamofire HTTP client edge detection. Dead code detection with AppDelegate/SceneDelegate lifecycle, SwiftUI View body, @IBAction/@IBOutlet, @objc, protocol conformance, Codable synthesis, XCTestCase, and @main entry point exclusions. Security scanner: query string safety via string interpolation, Process() execution safety, memory pointer safety patterns, UserDefaults storing sensitive data, CC_MD5/CC_SHA1 weak hashing, Insecure.MD5/SHA1 from CryptoKit, arc4random in crypto contexts, App Transport Security patterns, credential management patterns, hardcoded HTTP URLs.

Mojo / AI-native (strategic support) — fn (typed functions), def (Python-compatible functions), structs (value types), classes, traits (interfaces), alias (type aliases and compile-time constants), var/let declarations, import and from...import statements. Pattern-based parser (no tree-sitter-mojo available). Supports @value, @register_passable, @staticmethod decorators, inout/owned/borrowed parameter modifiers, SIMD/Tensor/DType type references. mojoproject.toml dependency parsing. Python interop detection (from python import). Cross-language route detection via Python framework interop (FastAPI/Starlette). Dead code detection with init/copyinit/moveinit lifecycle, trait implementations, MLIR dialect operations, and @export exclusions. Security scanner: Pointer[T] and DTypePointer memory safety, Python interop evaluation safety, uninitialized memory patterns, SIMD bounds safety, weak random via Python random module, hardcoded keys in alias declarations, hashlib via Python interop in crypto contexts. Mojo is the first AI-native language supported by Depwire.

Ruby / Web — method definitions (def, def self.), classes, modules, instance variables (@var), class variables (@@var), constants, attr_accessor/attr_reader/attr_writer, require/require_relative dependency edges, include/extend/prepend mixin edges, blocks, procs, lambdas, Struct and OpenStruct definitions, ActiveSupport::Concern support. Gemfile dependency parsing. Rails (get/post/put/patch/delete/resources/namespace in routes.rb), Sinatra (route + do blocks), Rack (map/run/use in config.ru), and Grape API cross-language route detection. Faraday, Net::HTTP, and HTTParty HTTP client edge detection. Dead code detection with Rails controller callbacks, ActiveRecord lifecycle callbacks, rake tasks, RSpec/Minitest methods, concerns (included/class_methods blocks), initialize, method_missing/respond_to_missing?, Pundit policy methods, and Devise strategy exclusions. Security scanner: string interpolation in database query methods, command execution safety patterns, runtime evaluation safety patterns, dynamic dispatch safety patterns, file operation safety patterns, YAML deserialization safety, Marshal deserialization safety, template rendering safety patterns, weak hash algorithms (Digest::MD5/SHA1), weak random (rand vs SecureRandom), credential management patterns, SSL verification patterns, weak cipher algorithms.

Dart / Flutter — classes, abstract classes, sealed classes (Dart 3.0+), mixins, extensions, enhanced enums, typedefs, records, top-level functions and variables, constructors (named and factory), methods, getters/setters, fields. import/export/part/part of/library directives with relative path resolution. pubspec.yaml dependency parsing. Flutter widget tree awareness: StatelessWidget, StatefulWidget, State subclass detection, build() method composition tracking. Shelf router, Aqueduct/Conduit, Angel framework, and Serverpod endpoint cross-language route detection. Dio, http package, Chopper (@Get/@Post), and Retrofit Dart (@GET/@POST) HTTP client edge detection. Dead code detection with Flutter widget lifecycle (initState, dispose, build, didChangeDependencies, didUpdateWidget), framework override methods, serialization methods (fromJson/toJson/copyWith), Riverpod providers, Bloc/Cubit event handlers, GetX controller lifecycle, test methods, and mock class exclusions. Security scanner: string interpolation in database queries, process execution safety, runtime reflection patterns, file path safety, JSON decoding validation, WebView JavaScript channel safety, platform channel validation, unencrypted local storage patterns, weak hashing for credentials, insecure random generation, credential management patterns, SSL certificate validation, insecure HTTP connections, and SharedPreferences vs FlutterSecureStorage patterns. Pattern-based parser (no tree-sitter-dart WASM available).

R / Statistics & Data Science — functions (including anonymous functions and closures), S3/S4/R5/R6 class definitions, methods, variable assignments (both <- and = forms), library/require/source dependency edges, NAMESPACE import/export directives, DESCRIPTION file dependency parsing. Pattern-based parser (tree-sitter-r unavailable on npm). Cross-language edge detection: plumber HTTP API route definitions (@get, @post, @put, @delete, @patch decorators) matched to client callers; Shiny reactive graph edges (server/UI function wiring, observe, reactive, eventReactive, renderXxx output bindings); outgoing HTTP client edges via httr (GET, POST, PUT, DELETE) and httr2 (request + req_perform); DBI database connection edges (dbConnect, dbGetQuery, dbExecute); reticulate Python interop edges (import_from_path, source_python, py_run_file). Dead code detection with S3/S4 generic registration exclusions, Shiny module server/UI functions, and testthat/RUnit test block exclusions. Security scanner: string interpolation in database query calls, system/system2/shell execution safety patterns, eval/parse runtime evaluation safety, file path handling safety, credential management patterns, weak PRNG in statistical-security contexts (sample/runif vs openssl for key material), and unvalidated input in plumber route handlers.

---

GitHub Action — PR Impact Analysis

Depwire integrates into your CI/CD pipeline via the depwire-action GitHub Action.

On every pull request it automatically posts a dependency impact report — which symbols changed, what breaks, health score before and after. Code reviewers see the architectural blast radius before merging.

Add to .github/workflows/depwire.yml:

name: Depwire PR Impact
on:
  pull_request:
    branches: [main]

permissions:
  contents: read
  pull-requests: write

jobs:
  depwire:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
        with:
          fetch-depth: 0
      - uses: actions/setup-node@v4
        with:
          node-version: '20'
      - uses: depwire/depwire-action@v1
        with:
          github-token: ${{ secrets.GITHUB_TOKEN }}

Block PRs that hurt your architecture:

- uses: depwire/depwire-action@v1
  with:
    github-token: ${{ secrets.GITHUB_TOKEN }}
    fail-on-score-drop: 5

GitHub Marketplace — depwire-action repo

---

Cloud dashboard

app.depwire.dev — full dependency graph, health score, dead code report, and AI codebase chat in the browser. No local setup required.

• Free for public repos
• Pro ($19/month) — unlimited repos, private repo support, AI codebase chat

---

Roadmap

Shipped

• Arc diagram visualization
• 23 MCP tools
• Multi-language support (TypeScript, JavaScript, Python, Go, Rust, C, C#, Java, C++, Kotlin, PHP, Swift, Mojo, Ruby, Dart, R)
• Architecture health score
• Dead code detection
• Temporal graph
• What If simulation — CLI + browser UI
• Security scanner — graph-aware severity elevation
• Cross-language edge detection — REST API + subprocess
• Structural diff between commits — depwire diff
• Public SDK — depwire-cli/sdk
• Cloud dashboard — app.depwire.dev
• PR Impact GitHub Action

Coming next

• AI-suggested refactors
• VSCode extension
• Natural language architecture queries

---

Security posture

Depwire is read-only. It never writes to, modifies, or executes your code.

• Parses with tree-sitter — the same parser used by VS Code and Zed
• Visualization server binds to localhost only
• No data leaves your machine
• Blocks access to sensitive system directories
• npm packages published with provenance verification

See SECURITY.md for full details.

---

Contributing

1. Fork the repository
2. Create a feature branch
3. Add tests for new functionality
4. Submit a pull request
5. Sign the CLA (handled automatically on your first PR)

---

Author

Atef Ataya — AI architect, author, and creator of Depwire.

• YouTube — 600K+ subscribers covering AI agents, MCP, and LLMs
• The Architect's Playbook: 5 Pillars
• LinkedIn

---

Depwire Action Token (DAT)

Depwire is the reference implementation of the Depwire Action Token (DAT) — an open standard for cryptographically signing AI agent actions. DAT provides tamper-proof audit trails for every tool call, file change, and agent delegation.

---

License

Business Source License 1.1 — free for personal and internal company use. Converts to Apache 2.0 on February 25, 2029.

Commercial licensing: atef@depwire.dev

---

Built with tree-sitter, graphology, D3.js, and the Model Context Protocol.
