Circuitarium MCP Server

Circuitarium MCP

Run the published local MCP server with one command:

npx -y circuitarium-mcp@0.2.0

That is a stdio server command for an MCP host, not an interactive shell program: it stays open until the host disconnects. Copy a ready-to-use setup for Codex, Claude Code, VS Code, LM Studio, or Jan, choose a narrow circuit workspace, then ask the model to call electronics_capabilities.

Give Claude, ChatGPT/Codex, or a local MCP-capable model a safe, typed electronics workbench instead of asking it to guess at opaque circuit files. Circuitarium MCP currently provides 14 bounded tools for Unity-era CRUMB .cru saves, including controlled-save comparison, netlist export, and evidence-scoped electrical checks. Project analysis is read-only; the sole file-writing tool emits only one of five fixed synthetic fixtures. The longer-term neutral layer is designed to support additional simulators without making CRUMB the universal data model.

Claude Desktop users can download circuitarium-mcp-0.2.0.mcpb from the matching GitHub Release and open it for a one-click local installation. The bundle prompts for the circuit workspace and contains the production Node.js dependencies. The current boundary is still file analysis: no live CRUMB control, arbitrary editing, or circuit simulation is claimed.

[!IMPORTANT] Circuitarium MCP and its CRUMBLE integration are independent, unofficial community interoperability work. They are not affiliated with, endorsed by, or sponsored by CRUMB or its developer. CRUMB and related names, marks, and assets belong to their respective owners. This repository contains no CRUMB game code, binaries, extracted assets, logos, or bundled third-party circuit designs.

Circuitarium MCP is an experimental, model-neutral electronics tool server with application-specific integrations. Its first integration family is CRUMBLE — Circuit Representation & Universal Model Bridge for Laboratory Electronics. CRUMBLE reads, validates, and compares CRUMB .cru save files, recognizes a version-pinned subset of CRUMB components, and generates a small set of independently authored synthetic fixtures. A separately licensed installation of CRUMB is needed only when a user chooses to test those files in the game; CRUMB itself is not included.

The separation is deliberate:

• A model host is ChatGPT, Codex, Claude, or a local agent runtime.
• Circuitarium MCP is the simulator-neutral umbrella and gives compatible hosts one typed electronics contract.
• CRUMBLE is the unofficial CRUMB-specific ruleset and integration family.
• A backend understands a file format or simulator. Only the local CRUMBLE crumb.file backend is callable through this server today.
• The portable electronics_* namespace is where simulator-neutral circuit concepts can grow without making CRUMB the universal data model.

Start with electronics_capabilities when a model is unfamiliar with the server. It returns the callable backend, truthful limitations, vocabulary, and recommended workflows in machine-readable form.

The public names do not replace established protocol identifiers. electronics_* remains the neutral tool namespace, crumb_* remains the CRUMB-specific tool namespace, and electronics.mcp/0.2 remains the result contract. Keeping these descriptive identifiers stable prevents a branding change from breaking existing MCP clients, prompts, handoffs, or saved automation. See the CRUMBLE integration guide.

Compatibility

Support is an interoperability claim about the tested file format, not a claim of affiliation or behavioral equivalence. See PROVENANCE.md for the evidence categories used by the project.

What works now

• Inspect and structurally validate CRUMB .cru files.
• Analyze 18 known CRUMB tool-ID schemas: boards, jumpers, passives, ICs, LEDs, power supplies, tactile/slide/DIP switches, potentiometers, labels, seven-segment displays, diodes, an Arduino/code component, and a signal generator.
• Resolve tool-5 DIP parts through 21 version-pinned prefab variants, including package labels and ordered semantic pin names observed in the tested build. Unresolved and partial pin naming remains explicit.
• Decode settings and serialized terminal order observed in the tested build for tools 7..14, without pretending those saved settings execute device behavior.
• Infer attachment groups using either explicit connections only or the version-pinned CRUMB 1.3.5 breadboard topology.
• Compare a controlled baseline and candidate .cru under the explicitly selected Unity compatibility profile without writing either file. The comparison distinguishes byte identity, modeled equivalence, parameter-value changes, lexical-only rewrites, attachments, geometry, and unverified payload signatures while binding pagination to both digests. Unknown XML fields, attributes, mixed content, namespace bindings used by content, or subtrees force partial, inconclusive coverage and are represented only by content-safe fingerprints. Unused, well-formed namespace declarations are representation-neutral.
• Export jumper-collapsed electrical nets with VCC/GND names on unambiguous DC-supply rails, leave mixed positive/ground supply roles explicitly unnamed, apply optional saved-switch-state merges with bounded provenance, and page large designs.
• Run static electrical rule checks over the inferred nets: supply shorts, LEDs directly across the rails, bypassed two-terminal parts, resistors above their power rating, floating IC power pins, and floating terminals — each finding tagged with evidence confidence and rule basis, without claiming any simulation ran.
• Group components into a bill of materials keyed by decoded part identity, with saved state (switch positions, supply on/off) deliberately excluded.
• Discover workspace .cru files with digests, and answer IC pinout questions from the version-pinned prefab registry.
• Page through component and connection details without placing an entire large design in one model response. Continue by copying data.page.nextCursor unchanged into the next request's cursor; it is opaque and bound to that project digest and view.
• Redact embedded source code by default while returning useful metadata and a digest; source is included only when explicitly requested.
• Keep 28C16 EEPROM images metadata-only after validating their exact 2,048-byte size. Treat user labels as untrusted and return at most a 160-character preview plus size and digest metadata.
• Treat the save name as untrusted too: return only a 160-character preview with size, digest, and truncation metadata. Nested component and connection collections carry explicit total, returned, limit, and truncated fields instead of growing without bound. Unknown payload observations return at most 64 child-key names in aggregate for one component.
• Validate a simulator-neutral circuit experiment.
• Generate five synthetic CRUMB save fixtures:
  • blank workspace
  • solderless breadboard
  • solderless breadboard plus detached power rail
  • breadboard-mounted 1 kΩ resistor
  • breadboard-mounted red LED
• Return a uniform electronics.mcp/0.2 result envelope, typed diagnostics, recovery hints, an explicit crumb.unity/1.3.5 compatibility profile, and a SHA-256 project digest suitable for cross-model handoff.
• Return the same typed INVALID_ARGUMENT envelope for malformed calls to registered tools while preserving strict input schemas for MCP clients.
• Guard continued reads with expectedProjectDigest; if the shared artifact changed, the tool stops with PROJECT_STATE_CONFLICT instead of analyzing stale handoff state.
• Preserve valid CRUMB files byte-for-byte through an internal, guarded round-trip core, including unknown nested payloads and original XML lexical forms. This is the safety foundation for future mutation tools, not a claim that arbitrary editing is exposed today.

All five generated fixtures were manually opened in the tested CRUMB 1.3.5 build and produced the intended visible components. That controlled observation and the inferred board topology apply only to the observed CRUMB 1.3.5 Unity-era format. It is not behavioral simulation evidence and does not establish compatibility with a Godot-based release.

This server does not control a running CRUMB process, edit arbitrary circuits, or simulate circuit behavior. CRUMB has no integration contract used by this project for run, pause, step, stimulus, or signal reads. The honest boundary today is the save file.

Non-redistributed compatibility observations

During development, two developer-published CRUMB designs were used locally to exercise the semantic analyzer beyond the synthetic fixtures:

Those third-party files are not included in this repository. These results are external compatibility observations, not part of the public test suite or a service-level target. Their official publication links, acquisition date, and SHA-256 identities are recorded in PROVENANCE.md. Connection counts use known-board-v1.3.5, and recognition does not mean the circuits were simulated or validated as electrically correct.

Quick start

Requirements: a supported Node.js release listed in package.json.

For a published-package setup, use the pinned npx command shown at the top of this README in one of the copyable client configurations. Set CIRCUITARIUM_MCP_ROOT to the smallest directory that should contain the circuits available to the model.

To develop or verify the server from source:

git clone https://github.com/Craftiee/circuitarium-mcp.git
cd circuitarium-mcp
npm ci
npm run check
node dist/src/server.js

The packaged circuitarium-mcp command and the one-click .mcpb bundle are install-smoke-tested before publication. Directly running either stdio entrypoint waits for an MCP client by design.

Useful CLI commands:

npm run cli -- list
npm run cli -- inspect fixtures/crumb/breadboard.cru
npm run cli -- analyze fixtures/crumb/breadboard-resistor.cru components 50
npm run cli -- compare baseline.cru candidate.cru components 50
npm run cli -- netlist fixtures/crumb/breadboard-led.cru

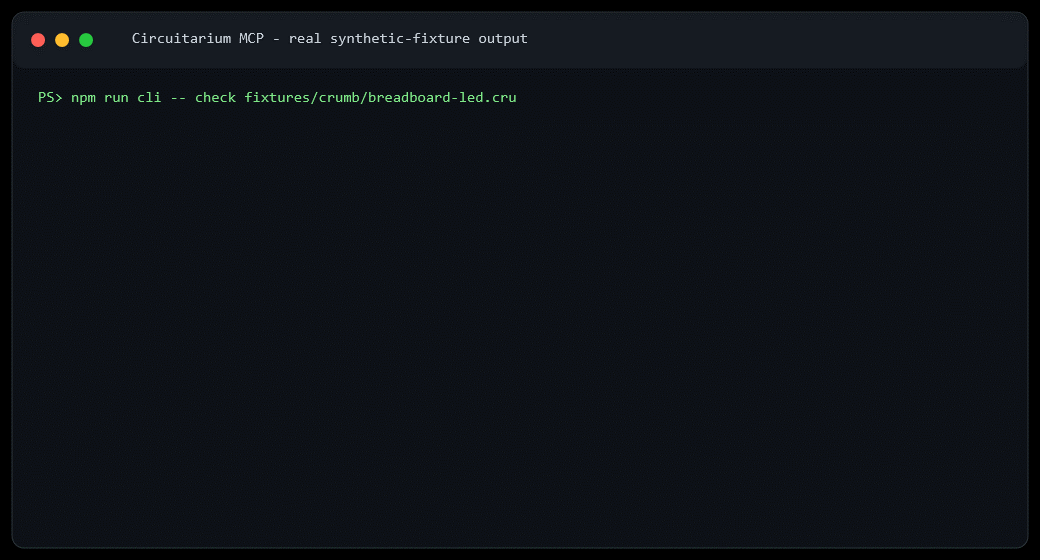

npm run cli -- check fixtures/crumb/breadboard-led.cru
npm run cli -- bom fixtures/crumb/breadboard-led.cru
npm run cli -- ic 74HC138
npm run cli -- validate fixtures/crumb/breadboard-and-rail.cru
npm run cli -- generate breadboard my-design.cru
npm run cli -- validate-experiment examples/experiments/four-bit-counter.json

Read commands invoke the same registered MCP tools as the stdio server and print the same result envelopes; only the fixture generate/generate-all maintenance commands write directly (they support --force, which the MCP surface never does).

The server confines file operations to its working directory by default. Set CIRCUITARIUM_MCP_ROOT to a different absolute directory if the MCP client should work with .cru files elsewhere. ELECTRONICS_MCP_ROOT remains a compatibility fallback for existing installations; prefer the Circuitarium name in new configurations.

For a concise model-host footing, use the minimal system prompt.

MCP tools

All tools have input and output schemas. Successful tool execution and valid domain data are separate states: a validator can return ok: true with data.valid: false. See the v0.2 tool contract.

File tools reject non-.cru paths, malformed UTF-8, byte snapshots over 64 MiB, paths outside the root selected by CIRCUITARIUM_MCP_ROOT (or the legacy fallback), and overwrite attempts. Semantic XML decoding has a separate 3,145,728-character document bound, and a comparison pair is additionally capped at 5 MiB combined. SHA-256 artifact identities cover the exact file bytes, including an optional UTF-8 BOM. Artifact references in results are workspace-relative rather than leaked absolute paths. Artifact metadata uses adapterTestedCompatibility to describe the adapter evidence; it does not claim that an arbitrary input file was created or tested in that CRUMB build.

The Unity decoder accepts XML 1.0 represented as UTF-8, enforces namespace well-formedness and strict typed scalar forms, and caps each parsed XML text node at 1 MiB. See the format notes for the exact declaration, numeric, base64, namespace, and structural-limit rules.

The file backend runs locally, but its capability reports dataLeavesMachine: "depends" because a cloud-backed MCP client or model host may receive tool results. Its build capability is false: the five fixed fixture generators are a compatibility aid, not a general circuit builder.

Passing work between models

Each stdio client normally launches its own MCP server process. Those processes do not share an in-memory session, even if one is launched by Claude and another by Codex. The CRUMB backend itself has no live session.

Models can still collaborate safely through the same workspace:

1. Model A analyzes a .cru file and records its workspace-relative project reference plus SHA-256 digest.
2. The handoff note passes that identity, compatibility profile, requested topology mode, findings, and next intended operation.
3. Model B passes that digest as expectedProjectDigest on its first read. A changed file returns ok: false with PROJECT_STATE_CONFLICT; otherwise the analysis is known to match the handed-off bytes.

See the cross-model handoff example.

Project map

• src/domain/experiment.ts — neutral experiment schema and semantic validation
• src/domain/contract.ts — model-neutral v0.2 result and error envelope
• src/domain/capabilities.ts — callable backend registry and model workflows
• src/adapters/crumb/ — .cru decoding, catalog, analysis, fixtures, and bounded file I/O
• src/adapters/crumb/compatibility.ts — the exact Unity-era interpretation profile and tested-build metadata
• src/adapters/crumb/compare.ts — digest-guarded controlled-save comparison with bounded, content-safe change reports
• src/adapters/crumb/icCatalog.ts — CRUMB 1.3.5 tool-5 prefab and ordered-pin evidence
• src/server.ts — local stdio MCP server
• src/cli.ts — local inspection/generation CLI
• fixtures/crumb/ — generated, CRUMB 1.3.5-tested .cru saves
• PROVENANCE.md — evidence classes, compatibility scope, and clean-room rules
• docs/contract.md — tool semantics and cross-model rules
• docs/crumble.md — CRUMBLE scope, evidence profiles, and stable identifiers
• docs/crumb-format.md — observed, version-pinned CRUMB schema notes
• docs/wokwi-audit.md — official Wokwi CLI/MCP audit
• docs/architecture.md — current boundary and scalable simulator roadmap
• docs/unity-adapter-plan.md — Unity-first comparison, editing, and writer acceptance gates
• docs/client-setup.md — ChatGPT/Codex, Claude, API, and local-model routes
• docs/release-checklist.md — local and GitHub publication gates
• ROADMAP.md — adapter, portable project, simulation, and live-bridge stages
• CHANGELOG.md — public interface and release history
• examples/client-configs/ — copyable setup for five MCP hosts
• examples/model-host/minimal-system-prompt.txt — compact, vendor-neutral operating rules for a model host
• mcpb/ — one-click local bundle manifest and packaging notes

Status

This is an experimental file adapter built from independently authored code, controlled CRUMB 1.3.5 saves, non-redistributed third-party compatibility examples, and observations of a lawfully installed version. Keep original designs backed up, do not infer electrical behavior from unknown payloads, and revalidate the format after every CRUMB update.

Contributions are welcome under the evidence and licensing rules in CONTRIBUTING.md. Report security issues using SECURITY.md, and use the project support channels described in SUPPORT.md. The project is licensed under the Apache License 2.0.
