Infra Lens MCP Server

infra-lens-mcp

Explain Linux incidents over SSH with baseline-aware MCP tooling.

infra-lens-mcp is a TypeScript MCP server that connects to Linux hosts over SSH, captures live metrics, stores local SQLite history, compares snapshots to baselines, and returns plain-English infrastructure explanations.

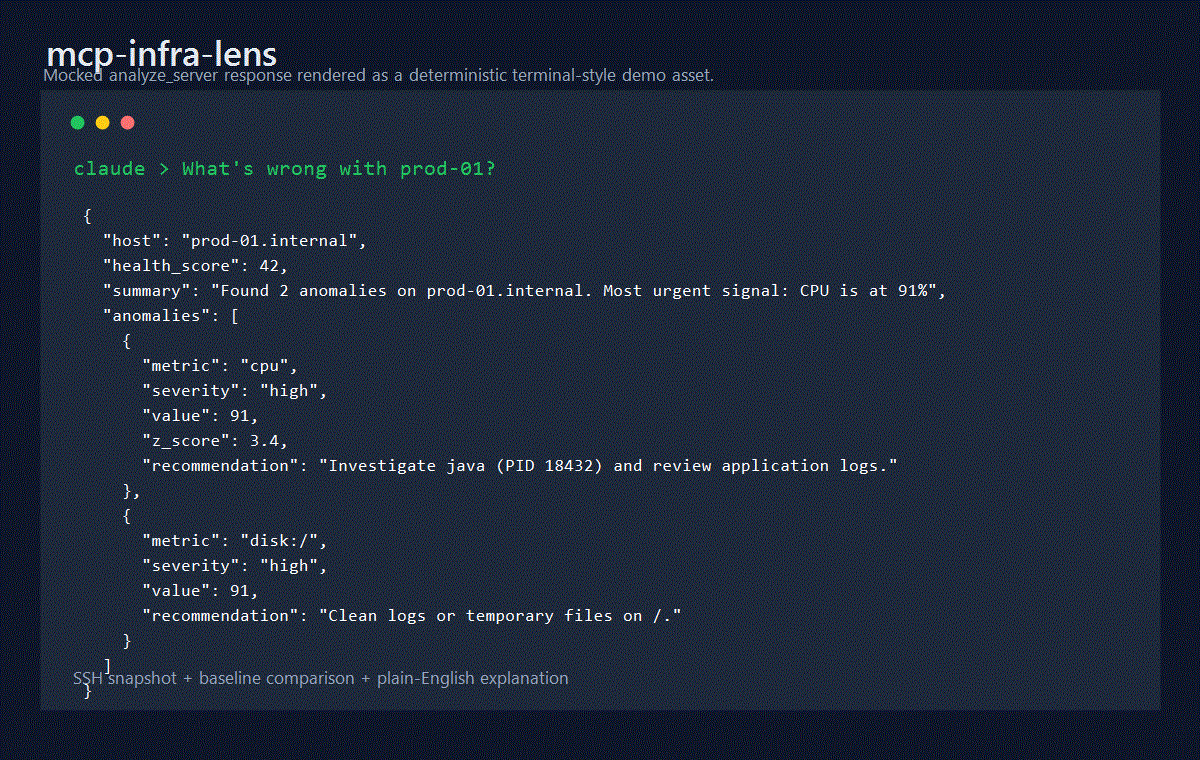

Demo

See the MCP 2025-11-25 compliance matrix for the current protocol support, delegated behavior, and open follow-up issues.

Tools

All tools return both readable JSON text and MCP structuredContent validated by declared outputSchema definitions, so clients and agents can consume responses without parsing the text block. Collection tools include a warnings array when optional sections cannot be collected but a partial snapshot is still usable.

Requirements

• Node.js 24 LTS for CI, Docker, and release workflows
• Node.js 22 or newer for package runtime compatibility
• pnpm 11.3.0 through Corepack for development installs
• Linux SSH targets with /proc, free, df, ps, and uname
• Strict SSH host verification through known_hosts or pinned SHA256 host keys

Quick Start

Run the stdio MCP server from npm:

npx -y infra-lens-mcp

Desktop MCP client style configuration:

{
  "mcpServers": {
    "infra-lens": {
      "command": "npx",
      "args": ["-y", "infra-lens-mcp"],
      "env": {
        "INFRA_LENS_DB": "/Users/you/.infra-lens-mcp/metrics.db"
      }
    }
  }
}

Local development:

corepack enable
corepack prepare pnpm@11.3.0 --activate
pnpm install --frozen-lockfile
pnpm run build
node dist/mcp.js

Configuration

MCP_DB_PATH from older examples is not used; use INFRA_LENS_DB.

SSH Security

Strict host key checking is enabled by default. Provide either:

• a hostKeySha256 value in the connection input, such as SHA256:...
• a knownHostsPath in the connection input
• MCP_SSH_KNOWN_HOSTS pointing at an OpenSSH known_hosts file

Raw passwords, private keys, and passphrases are accepted only in the default full profile for trusted local MCP contexts. remote-safe, chatgpt, and claude profiles reject raw SSH credentials in tool input and require MCP_SSH_ALLOWED_HOSTS. Production SSH policy can also restrict exact hosts or IPv4 CIDR ranges, users, ports, per-host active sessions, and per-host connection attempts.

Process command arguments are not collected by the default process command. Secret-like values in process data, SSH errors, and logs are redacted before storage or output.

HTTP Transport

Run the Streamable HTTP transport locally. The canonical MCP endpoint is http://127.0.0.1:3000/mcp unless MCP_HTTP_ENDPOINT_PATH is changed. HTTP mode is stateless today: the server does not issue or accept MCP-Session-Id, and only POST JSON-RPC calls are supported on the MCP endpoint.

MCP_TRANSPORT=http MCP_HTTP_HOST=127.0.0.1 MCP_HTTP_PORT=3000 node dist/server-http.js

Loopback HTTP can run without auth for local development. Any non-loopback bind, such as 0.0.0.0, fails fast unless all of these are configured:

• MCP_PROFILE=remote-safe, chatgpt, or claude
• MCP_HTTP_AUTH_MODE=bearer or oauth-gateway
• MCP_HTTP_ALLOWED_ORIGINS
• MCP_HTTP_ALLOWED_HOSTS

Native OAuth/JWT validation is not implemented inside this package. Public deployments should use MCP_HTTP_AUTH_MODE=oauth-gateway behind a production OAuth-aware gateway or reverse proxy, configure HTTPS MCP_HTTP_RESOURCE_URL, and block direct access to the Node process. Keep origin/host allowlists, body limits, request timeout, concurrency limit, and optional rate limit enabled at the Node process even when an upstream proxy also enforces them. See ADR 0006. Connector publication readiness remains false until a full connector deployment is verified.

Docker

The Docker image defaults to stdio mode:

docker build -t infra-lens-mcp .
docker run --rm -it \
  -v "$HOME/.infra-lens-mcp:/home/appuser/.infra-lens-mcp" \
  infra-lens-mcp

For local HTTP testing, override the command and keep the bind host on loopback unless a remote-safe profile and auth controls are configured:

docker run --rm -p 127.0.0.1:3000:3000 \
  -e MCP_TRANSPORT=http \
  -e MCP_HTTP_HOST=0.0.0.0 \
  -e MCP_HTTP_ALLOWED_ORIGINS=http://localhost:3000 \
  -e MCP_HTTP_ALLOWED_HOSTS=localhost:3000 \
  -e MCP_HTTP_AUTH_MODE=bearer \
  -e MCP_HTTP_BEARER_TOKEN=local-dev-token \
  infra-lens-mcp node dist/server-http.js

Development

pnpm run format:check
pnpm run lint
pnpm test
pnpm run test:coverage
pnpm run build
pnpm run check:metadata
pnpm run package:dry-run

Docker-backed SSH e2e validation uses a self-contained fixture lifecycle:

pnpm run test:e2e

If a fixture is already running and you intentionally want to skip lifecycle management, use:

INFRA_LENS_E2E_SKIP_FIXTURE=1 pnpm run test:e2e:raw

Generated API docs live in docs/api. Client setup recipes live in docs/integrations/client-setup.md.

See docs/testing.md, docs/security.md, docs/operations.md, and docs/release.md for the full operational workflow.

Community

Use SUPPORT.md for support channels and response expectations. Project conduct is defined in CODE_OF_CONDUCT.md, and maintainer triage policy lives in docs/governance.md.

Release

Releases are managed through release-please manifest mode and the guarded GitHub Actions release workflow. Implementation PRs must not publish packages, containers, MCP Registry entries, marketplace artifacts, or production GitHub Releases.

See docs/release.md and docs/release-state-machine.md.

License

MIT

Agent plugin and runtime configuration

This repository owns the product-level agent plugin, MCP runtime configuration, and product-specific skills for infra-lens-mcp. The central agent-tools repository should catalog this plugin, but the manifest and workflow instructions live here so they stay synchronized with the actual MCP server package.

Validate plugin packaging locally:

claude plugin validate .
