Opencage Geocoding MCP Server

OpenCage Geocoding MCP Server

An MCP (Model Context Protocol) server that provides geocoding capabilities using the OpenCage geocoding API. This server allows you to convert between addresses and geographic coordinates.

PLEASE NOTE: the examples shown here are based on an integration with claude.ai's desktop client. MCP as a concept is supported by other services, but may require a slightly different configuration.

Features

• Forward Geocoding: Convert addresses or place names to coordinates (latitude/longitude)
• Reverse Geocoding: Convert coordinates to addresses
• API Status Monitoring: Check your API usage and rate limits (assuming your penCage account has hard limits).

Prerequisites

1. Node.js (version 20 or higher)
2. OpenCage geocoding API Key: Sign up on the OpenCage website to get a free-trial geocoding API key

Installation

1. Is MCP the right tool?

   This MCP is the right tool for small amounts of geocoding, for example while manually prompting an LLM.

   If however, you want to process larger volumes of data, for example CSV files full of address or coordinates, or connecting to database full of data, it is almost certainly both faster and more affordable to use our command line tools, or have the LLM write a script to call our API directly.

   We offer a markdown-formatted opencage-geocoding-api SKILL file to train your AI on best practices for working with our geocoding API.

2. Clone the repository. Change into the repository directory

git clone git@github.com:OpenCageData/opencage-geocoding-mcp.git
# or
git clone https://github.com/OpenCageData/opencage-geocoding-mcp.git

cd opencage-geocoding-mcp

1. Install dependencies:

npm install

This is enough to get the MCP working with Claude Desktop (see below)

If you want to develop the MCP and plan to query the MCP from the command line you will also need to:

1. Set your OpenCage geocoding API key as an environment variable:

export OPENCAGE_API_KEY="your_opencage_geocoding_api_key_here"

1. Build the project:

npm run build

Usage

Using within Claude Desktop

Add this configuration to your Claude Desktop config file

On a Mac the config file should be (~/Library/Application Support/Claude/claude_desktop_config.json), but you can also navigate to the file via the menu: Settings > Developer > Edit Config

{
  "mcpServers": {
    "opencage-geocoding": {
      "command": "node",
      "args": ["/ABSOLUTE/PATH/TO/opencage-geocoding-mcp/build/index.js"],
      "env": {
        "OPENCAGE_API_KEY": "your_opencage_geocoding_api_key_here"
      }
    }
  }
}

Available Tools

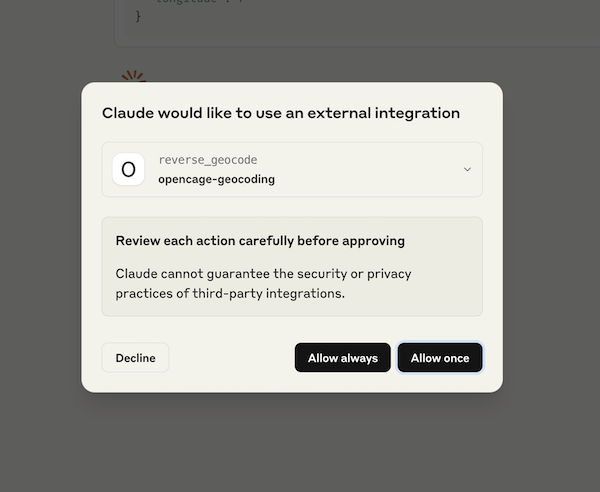

Note: the first time you run a command you will need to give Claude permission

1. geocode-forward

Convert an address or place name to coordinates and information about that location.

Parameters:

• query (required): The address or place name to geocode
• countrycode (optional): Restrict to country (ISO 3166-1 alpha-2 code)
• bounds (optional): Bounding box (min_lon,min_lat,max_lon,max_lat)
• language (optional): Language for results (e.g., 'en', 'de', 'fr')
• limit (optional): Max results (1-100, default 10)
• no_annotations (optional): Exclude location annotations

Example prompts

Prompt: "What are the coordinates of Trafalgar Square, London?"
Result: coordinates, timezone, local currency, etc

Prompt: "Where is Les Vans, France? Which Department is it in?"
Result: coordinates, and correct answer that Les Vans is in the Ardèche department

Prompt: "In welchem Bundesland liegt Weimar?"
Result: coordinates, and correct answer that Weimar is in Thüringen

2. geocode-reverse

Convert coordinates to an address and information about that location

Parameters:

• latitude (required): Latitude coordinate (-90 to 90) in decimal format
• longitude (required): Longitude coordinate (-180 to 180) in decimal format
• language (optional): Language for results
• no_annotations (optional): Exclude location annotations

Example prompts

Prompt: "what is the address at 38.8976, -77.0365?"
Result: "1600 Pennsylvania Avenue NW, Washington, DC 20500, United States of America"

Prompt: "Which province are the coordinates 41.38700, 2.16995 in?"
Result: "Coordinates are in Barcelona in the province of Catalonia"

3. get-opencage-info

Check your current API usage and rate limits. NOTE: subscription customers do NOT have hard usage limits. See relevant documentation.

Parameters: None

Returns: Information about remaining requests, rate limits, and reset times.

Available Prompts

geocoding-assistant

A helpful assistant for geocoding tasks. Provides guidance on using the geocoding tools effectively.

Error Handling

The server includes comprehensive error handling:

• Invalid API keys
• Rate limit exceeded
• Network errors
• Invalid coordinates or addresses
• API service unavailable

Environment Variables

• OPENCAGE_API_KEY: Your OpenCage geocoding API key (required)

Troubleshooting

1. "API key required" error: Make sure the env var OPENCAGE_API_KEY is set
2. "No results found": Try a more specific or different address format, see the OpenCage guide to query formatting
3. Rate limit errors: Check your API usage with get-api-status tool
4. Network errors: Verify internet connection or the public OpenCage status page

Relevant Links

• OpenCage homepage - Get your geocoding API key

• OpenCage API Documentation - Full OpenCage geocoding API reference

• OpenCage MCP tutorial

• Model Context Protocol - Learn more about MCP
