MagicTeX — LaTeX Editor for AI Agents

English · 简体中文 · 日本語 · 한국어 · Español · Français · Deutsch · Português

MagicTeX is a LaTeX editor built for AI agents — an Overleaf-like one-window workspace for Claude Code, served by an MCP server, with no local TeX install and no Overleaf account: live PDF preview, a source editor with a Visual (WYSIWYG) mode, change history, and comments you anchor on the rendered PDF that become edit instructions for the agent. (npm package: magictex-mcp.)

It compiles with a WASM TeX Live 2026 engine (texlyre-busytex) running inside a headless browser, so there's nothing multi-gigabyte to install — just a one-time WASM asset download.

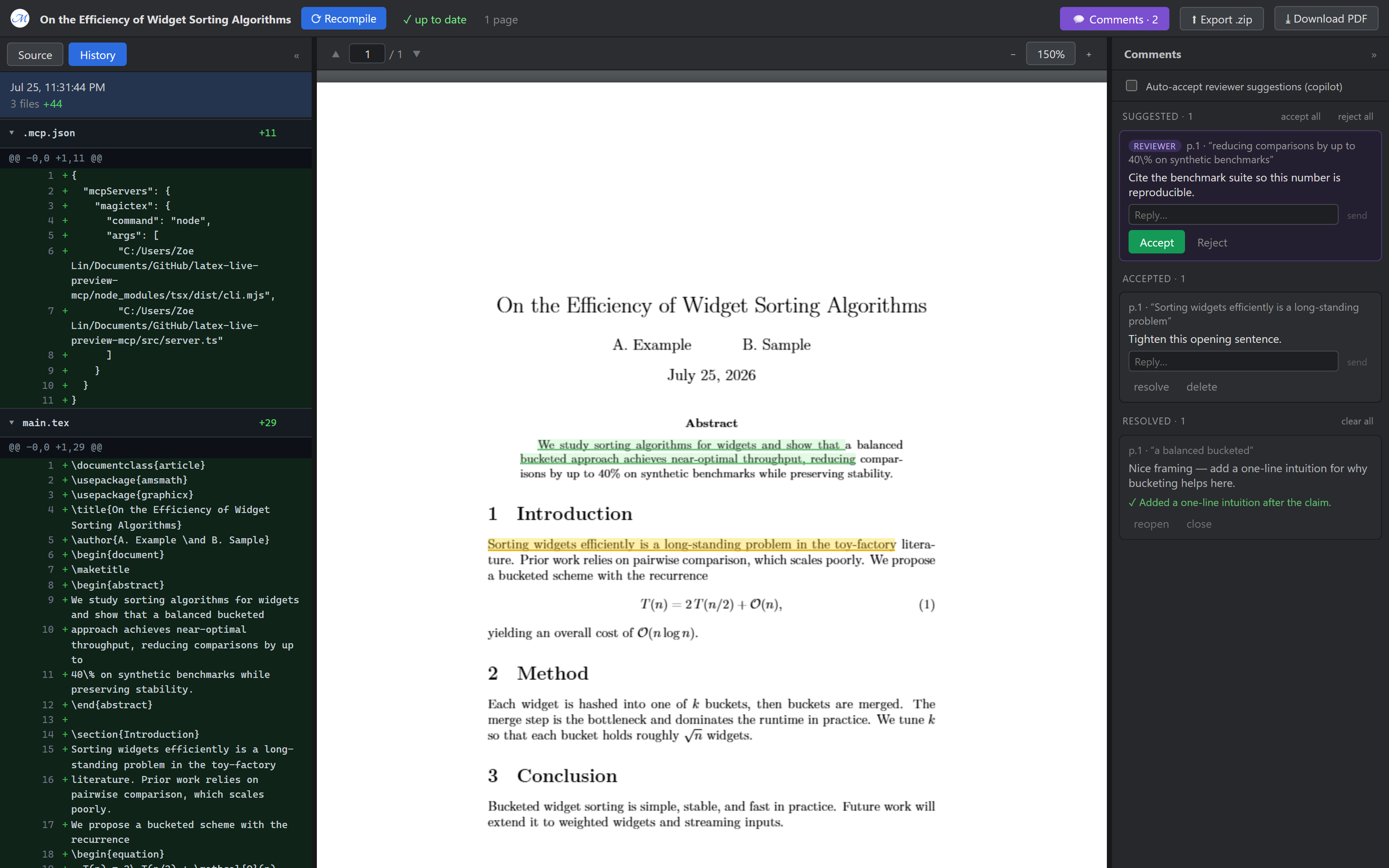

The workspace

One browser window (inspired by Typst's one-surface editor and LiquidText's anchored annotations):

┌──────────────────────────────────────────────────────────────┐
│  ✓ up to date · 13 pages        Export .zip · Download PDF   │
├────────────┬──────────────────────────────┬──────────────────┤
│ Source /   │          PDF (live)          │    Comments      │
│ History    │  select text → 💬 comment    │  accepted → ask  │
│  editor,   │  highlights stay anchored    │  Claude to       │
│  timeline  │  auto-reloads on every edit  │  address them    │
│  + diffs   │                              │  → resolved ✓    │
└────────────┴──────────────────────────────┴──────────────────┘

• Comment → Claude loop (the point of it all). Review the rendered document like a supervisor marking up a printout: select text, attach a comment ("tighten this paragraph"). Then tell Claude to "address my comments" — it pulls them via check_comments as located work items (page + quoted passage
  • the source file:line it anchors to + your ask), edits the source, and resolves each card with a note. You interact with the document; Claude interacts with the source. Run it hands-off with /loop — see docs/AGENT-LOOP.md.
• Editable source panel. A CodeMirror LaTeX editor with the project's files — save (Ctrl+S) recompiles and refreshes the PDF, Typst-style. Or keep using your own editor: any save triggers the same live loop.
• Live reload. A file watcher recompiles on every save — Claude's edits, the built-in editor's, or your external editor's.
• Change history. Each successful compile is auto-snapshotted to a hidden git ref (refs/latex-preview/checkpoints) — never touching your branches, git log, or working tree. The History tab shows the timeline and each checkpoint's colorized diff beside the PDF.
• Get to Overleaf. Download PDF, Export .zip (clean build-inputs bundle), and a one-click Open in Overleaf link for public GitHub repos; Premium Git-bridge sync is a documented git push. See docs/USER-GUIDE.md.
• Review workflow (reviewer → gate → resolver). A reviewer/defender agent posts comments via add_comment; you Accept/Reject them (or flip Auto-accept for copilot mode); an author loop resolves the accepted ones. Comments carry roles and a reply thread. See docs/AGENT-LOOP.md.
• Save vs. recompile, your call. The built-in editor auto-saves every 30s without recompiling; Ctrl+S / Save / Recompile rebuild the PDF on demand. (Flip ⚡ Live for recompile-as-you-type.) Your own editor and Claude's edits still auto-recompile via the watcher.
• Real projects. Auto-detects the main file, gathers multi-file \input/\include, .bib, in-repo .cls/.sty/.bst and figures, runs BibTeX and reruns when needed; common missing packages are auto-injected.
• Compile backend. Zero-install WASM TeX Live by default; pass backend: "system" (or "auto") to render_preview to compile with your local latexmk for full package fidelity.
• MCP tools: render_preview (compile + open the workspace), check_comments / resolve_comment / add_comment / reply_to_comment (the review loop), show_diff (side-by-side diff as an image — useful on image-capable clients).
• Actionable errors. Failed compiles return parsed {file, line, message} errors so Claude can self-correct, and show in the workspace.

Setup

MagicTeX is on npm as magictex-mcp and listed in the official MCP registry as io.github.ZoeLinUTS/magictex — so any client that reads the registry can find it. There's nothing to clone and no TeX install; npx fetches it on first use.

1. Add it to your paper project's .mcp.json (see .mcp.json.example):

   {
     "mcpServers": {
       "magictex": { "command": "npx", "args": ["-y", "magictex-mcp"] }
     }
   }


   For local development from a clone, point it at the source instead: "command": "npx", "args": ["tsx", "/absolute/path/to/magictex-mcp/src/server.ts"]

2. Restart Claude Code (or /mcp reconnect) so it picks up the server.

3. Ask Claude to render. e.g. "render a preview of this paper" → the first call downloads the WASM TeX Live assets (~480 MB, one time), compiles, and opens the live preview tab. Subsequent edits reload it automatically.

The WASM assets are not in this repo — they're fetched on first run into assets/. To pre-fetch them manually: npx texlyre-busytex download-assets assets.

Install as a Claude Code plugin (slash commands)

For a low-typing workflow, install MagicTeX as a plugin — one install gives you the MCP server and the slash commands:

/plugin marketplace add ZoeLinUTS/MagicTeX-mcp
/plugin install magictex

Then, in your paper project, use the workflow commands for the common flows:

• /magic-latex — compile and open the workspace (the live preview).
• /ai-review [skill] — review the paper with a skill (default academic-paper-revision; pass any skill name) and post comments for you to Accept/Reject. Missing skills are reported with an install hint.
• /address-comments — resolve your accepted comments (loop it with /loop 60s /address-comments).
• ⚡ /ultra-agents [skill] [depth] — fully autonomous: review, auto-accept, fix, repeat, up to depth rounds (default 2), stopping early the moment a round finds nothing new. No per-round approval — that's the point, and the risk. depth > 5 asks you to confirm before starting. Ends with a summary (what was raised, what changed, which checkpoints to look at) — every round is still an ordinary, revertible checkpoint. See docs/AGENT-LOOP.md.

One command per tool

Every MCP tool also has a slash command with the same name, so you can drive any single step by typing the tool name. The rule to teach: the tool is X → type /X.

You never have to type these — plain English works too ("render a preview", "address my comments"). The commands are just a fast, teachable shorthand.

The plugin's bundled MCP server runs npx magictex-mcp, so it works once the package is published to npm. Until then, keep the .mcp.json above for the server; the slash commands work either way.

See it in the terminal

These are real tool outputs, captured verbatim from an actual run against the sample paper — not mocked up. This is what you see in Claude Code while the browser workspace (screenshot above) reflects the same state live.

You type:

/magic-latex

Claude calls render_preview and replies:

✓ Compiled main.tex with xelatex in 1900ms — 2 files. Workspace (live preview,
source editor, history, PDF comments — auto-reloads on edits):
http://127.0.0.1:52042/app

You (or a reviewer skill) leave a comment, then ask what's ready to act on. Claude calls check_comments:

1 accepted comment — edit each at its source location per the instruction, then
call resolve_comment with its id and a one-line note:

[id: 2fce9e3c8b5f] p.1 — "Sorting widgets efficiently is a long-standing problem"
  ↳ source: main.tex:15
  → Tighten this opening sentence.

(1 reviewer suggestion still awaits the human's accept in the workspace — not
actionable yet.)

Claude makes the edit and calls resolve_comment:

✓ Resolved comment 2fce9e3c8b5f ("Sorting widgets efficiently is a long-standing
problem…") — the card now shows: Rewrote the opening sentence.

Ask again, and the accepted queue is empty — only the still-unaccepted suggestion remains, waiting on you:

No accepted comments. (2 already resolved.)

(1 reviewer suggestion still awaits the human's accept in the workspace — not
actionable yet.)

How it works

Claude edits .tex ─┐
 file watcher ─────┼─▶ compile coordinator ─▶ headless Chromium ─▶ WASM TeX ─▶ PDF
 render_preview ───┘         (serialized)         (engine host)                │
                                                                               ▼
                     your workspace (/app)  ◀── WebSocket "reload" ◀── local HTTP server
                     Source · PDF · History · Comments        (serves /app + /latest.pdf)

The WASM engines need DOM/Worker globals, so the server hosts a hidden headless Chromium as its compile worker; the workspace you open is a lightweight React + pdf.js app with no WASM in it. See docs/ARCHITECTURE.md.

flowchart LR
  H["👤 You<br/>Source · PDF · History · Comments"]
  A["🤖 Claude Code<br/>+ review / author agents"]

  H <-->|"select text →<br/>anchor comment"| SRV["Preview server<br/>HTTP + WebSocket · serves /app"]
  A -->|"7 MCP tools"| MCP["MCP server<br/>render_preview · show_diff · list_checkpoints<br/>check / resolve / add / reply_comment"]

  SRV --> CO["Compile coordinator<br/>(serialized)"]
  MCP --> CO
  A -. edits source .-> FILES[("Paper files · git repo")]
  FILES --> WATCH["File watcher"] --> CO
  CO --> ENG["WASM busytex<br/>(headless Chromium)"] --> PDF["/latest.pdf"]
  PDF -. live reload .-> H
  CO --> CK["git checkpoints<br/>(hidden ref) → History"]

  SRV <--> CJSON[(".latex-preview/<br/>comments.json")]
  MCP <--> CJSON
  CJSON -->|"check_comments<br/>(your accepted asks)"| A

Both front doors — you in the workspace, agents through the 7 MCP tools — meet at the same coordinator, comment store, and git history. You act on the rendered document (anchor a comment); Claude acts on the source (reads your comments via check_comments, edits, resolve_comment). That shared substrate is what makes the comment loop, the review workflow, and traceable history possible.

Requirements

• Node 20+
• Playwright's Chromium (installed automatically; ~150–300 MB) — or set it to reuse your installed Chrome.
• ~650 MB disk for the one-time WASM TeX Live assets (a normal paper only needs the ~118 MB basic set; larger package sets load on demand).

Development

npm install
npm run typecheck    # tsc for the server and the UI
npm run build:ui     # build the React workspace to ui/dist
npm test             # comment store, anchor matching, and an MCP workflow E2E
npm start            # run the server on stdio (for a manual MCP client)

CI (.github/workflows/ci.yml) runs typecheck + UI build + tests on Node 20 and 22 for every push and pull request. The tests are engine-free (no headless browser), so they're fast and deterministic; please keep them green and add coverage with changes.

Documentation

• User guide — everyday use, the comment loop, Visual mode, the file tree, getting your paper into Overleaf, package coverage.
• The agent loop — comments as triggers, running it hands-off with /loop, the reviewer → gate → resolver workflow, and ⚡ /ultra-agents.
• Roadmap — what's shipped for concurrent agents, and what real parallel multi-agent editing still needs.
• Architecture — why a headless browser, what every module does, the compile flow.

All four are translated into the same 8 languages as this README — each page has its own language switcher at the top.

Roadmap

Multiple Claude Code sessions can already work the same project concurrently without corrupting comments or the checkpoint history (see docs/ROADMAP.md) — true parallel multi-agent editing (reviewer/author/defender on their own git branches, merged back together) is the next milestone.

Sponsor this project

MagicTeX is free and open source (AGPL-3.0). If it saves you time on your papers, please consider sponsoring the project — it funds continued development. A ⭐ on the repo helps too.

License

AGPL-3.0-or-later — matching the texlyre-busytex engine it builds on. See THIRD_PARTY_NOTICES.md.
